From Fragments to Geometry: A Unified Graph Transformer for Molecular Representation from Conformer Ensembles

Duy Minh Ho Nguyen; Trung Quoc Nguyen; Ha Thi Hong Le; Mai Thanh Nhat Truong; TrungTin Nguyen; Nhat Ho; Khoa D. Doan; Duy Duong-Tran; Li Shen; Daniel Sonntag; James Zou; Mathias Niepert; Hyojin Kim; Jonathan E. Allen

Abstract

Designing and understanding molecules for biological applications requires models that can integrate rich structural information from both 2D molecular graphs and diverse 3D conformer ensembles. We introduce a fragment-aware, structure-guided graph transformer that enables scalable and expressive molecular modeling by aggregating multiple 3D conformers while incorporating fragment-level inductive biases from the 2D topology. Our approach employs a trainable attention-based fusion mechanism within a graph transformer to dynamically combine 2D and 3D representations, moving beyond static solvers and rigid fusion heuristics. This architecture enables fine-grained reasoning over chemically diverse molecules, including organocatalysts and transition-metal complexes. While originally developed for molecular property prediction, the method’s structure-aware and fragment-level modeling is readily applicable to other downstream applications in drug discovery, reaction modeling, and AI-driven biological research. The model scales to large datasets and achieves state-of-the-art results across molecular property benchmarks, demonstrating its potential as a foundational component for generative AI in molecular science.

Machine Learning, ICML

round-mode = places, round-precision = 2, [linecolor=black,linewidth=1pt,skipabove=10pt,skipbelow=10pt]boxedtheoremTheorem

1 Introduction

Machine learning has become a transformative tool in computational biology, chemistry, and drug discovery, enabling predictive and generative modeling of molecular systems (Butler et al., 2018; Vamathevan et al., 2019; Choudhary et al., 2022; Fedik et al., 2022; Batatia et al., 2023). Many existing molecular representation learning methods rely on either 2D molecular graphs, which capture topological connectivity efficiently (Kipf & Welling, 2017; Gilmer et al., 2017b; Xu et al., 2018; Veličković et al., 2018), or on 3D representations derived from a single conformer (Schütt et al., 2017, 2021b; Batzner et al., 2022; Batatia et al., 2022). While 2D graphs are computationally efficient, they lack essential geometric context - critical for understanding molecular interactions, activity, and design. Incorporating 3D conformers introduces spatial features such as bond lengths and torsion angles, but relying on a single conformation fails to reflect the intrinsic flexibility and thermodynamic diversity of real molecules.

In biological systems, molecules dynamically sample a range of conformations due to bond rotations, vibrational modes, and environmental interactions (Ramsundar et al., 2019), and many functionally relevant properties — such as solubility, binding affinity, or reactivity — emerge from this conformational ensemble (Perola & Charifson, 2004). Yet, fully modeling the conformational distribution remains computationally intensive, as quantum mechanical methods for conformer generation are expensive (Rosa et al., 2016; Wankowicz & Bonomi, 2025; Medrano Sandonas et al., 2024). This challenge has motivated hybrid learning models that combine the scalability of 2D graphs with the geometric richness of a small but representative subset of 3D conformers. These approaches are currently opening a promising path toward generative molecular design, where both topological and spatial variations are essential for modeling bioactive compounds and synthesizable drug-like molecules.

To address this, structure-aware ensemble methods based on optimal transport - especially those using fused Gromov-Wasserstein (FGW) alignment - have shown promise (Brogat-Motte et al., 2022; Ma et al., 2023; Nguyen et al., 2024a). By aligning both feature and geometric spaces, these models better preserve spatial correspondences across conformers and enable expressive ensemble aggregation. However, such methods are computationally expensive and struggle to scale to large molecular datasets such as Drugs-75k (Zhu et al., 2023; Axelrod & Gomez-Bombarelli, 2022), limiting their utility for high-throughput applications in generative biology.

In this work, we propose a scalable alternative: a trainable, geometry-aware graph transformer that replaces costly FGW alignment with efficient attention-based conformer aggregation. By supervising the model with FGW distances during training, we learn a latent embedding space where conformer similarities reflect both topological and geometric structure. This enables fast, permutation-invariant conformer integration suitable for large-scale generative pipelines. Beyond efficiency, we further enrich our model with fragment-level structural priors from 2D molecular graphs, injecting chemically meaningful hierarchies into both message passing and 3D attention layers. This unified 2D–3D framework captures fine-grained spatial and topological interactions essential for applications such as molecular property prediction, virtual screening, and functional optimization.

In summary, our key contributions are:

•

We propose a scalable, geometry-aware conformer aggregation framework, denoted as FACET, that replaces costly FGW alignment with a trainable Graph Transformer, enabling efficient, deterministic attention-based inference. We further provide theoretical bounds on the approximation error relative to FGW distances.
•

We introduce a unified 2D–3D representation learning approach that embeds fragment-level structural priors into both 2D message passing and 3D spatial self-attention, capturing multi-scale interactions between molecular topology and geometry.
•

Our method delivers over 6× faster aggregation than prior geometry-aware baselines and achieves state-of-the-art performance across six benchmarks, including molecular property prediction and Boltzmann-weighted ensemble tasks, demonstrating robustness across diverse molecular scenarios and dataset scales.

2 Related Work

2.1 Conformer Ensemble Learning in Molecular Representations

Molecular representations range from fingerprints (Morgan, 1965) and 1D strings (Ahmad et al., 2022; Wang et al., 2019) to 2D graphs (Gilmer et al., 2017a; Rong et al., 2020) and 3D geometric models (Fang et al., 2021; Zhou et al., 2023). While 2D models are efficient, they lack spatial context; 3D models add geometric detail but often rely on a single conformer, overlooking structural flexibility. Recent hybrid approaches combine 2D graphs with conformer ensembles (Zhu et al., 2024b; Axelrod & Gómez-Bombarelli, 2023), using aggregation techniques like pooling or self-attention (Zaheer et al., 2017; Vaswani et al., 2017). Geometry-aware methods based on FGW alignment (Brogat-Motte et al., 2022; Nguyen et al., 2024a) better capture spatial similarity across conformers but are computationally costly and struggle to scale in generative or high-throughput settings (Zhou et al., 2023). Our method addresses this limitation by using graph transformer architectures to learn latent embeddings of 3D conformers, integrating both geometry-aware signals - akin to those used in FGW-based methods—and hierarchical features from molecular fragments. This yields a scalable and permutation-invariant framework that balances computational efficiency with high representational power, making it well-suited for accuracy-critical molecular tasks.

2.2 Scalable Optimal Transport for Graph Learning

Recent advances in learning-based Optimal Transport (OT) have introduced efficient alternatives to classical solvers. Early work leveraged differentiable Sinkhorn distances with entropic regularization to improve stability and scalability (Cuturi, 2013; Feydy et al., 2019; Genevay et al., 2018). Subsequent methods enhanced computational efficiency through structural simplifications, such as low-rank approximations (Scetbon et al., 2021; Cuturi et al., 2020) and spatially-aware geometry-based formulations (Bachmann et al., 2022; Solomon et al., 2015). Additionally, meta-learning techniques accelerated optimization by learning better initializations (Amos et al., 2023), while more recent approaches have trained neural OT models directly on data to bypass iterative solvers altogether (Courty et al., 2017; Tong et al., 2021; Haviv et al., 2024).

Despite these advances, most of this work is limited to standard OT and does not extend to structure-aware variants like Fused Gromov-Wasserstein (FGW), which account for both feature similarity and relational graph structure. To address this, we introduce the first learned approximation of FGW via a graph transformer architecture, enabling scalable and geometry-aware aggregation across conformer ensembles. By integrating fragment-level structural priors into both 2D and 3D encoders, our framework supports multi-scale reasoning that unifies topological connectivity with spatial conformational diversity—essential for rich molecular representation and downstream biological modeling.

2.3 Fragment-biases in Molecular GNN

Fragment-level molecular substructures, such as rings, functional groups, and pharmacophores, play a central role in property prediction and drug development (Merlot et al., 2003; Varnek et al., 2005). Recent studies have harnessed these motifs for scaffold-aware molecule generation (Lee et al., 2024; Li, 2020; Chan et al., 2024), fragment-centric self-supervised tasks like masking and contrastive learning (Rong et al., 2020; Zhang et al., 2021; Wen et al., 2024), and in graph neural networks that encode inductive biases at the fragment level (Fey et al., 2020; Wang et al., 2025; Wollschläger et al., 2024). These approaches consistently demonstrate improved generalization, interpretability, and data efficiency. Motivated by these findings, we take a complementary approach: embedding fragment-level priors directly into hybrid 2D–3D molecular models. Our method encodes hierarchical substructures into both 2D message passing and 3D spatial attention, supporting multi-scale reasoning across topological and geometric domains. This design enhances conformer ensemble aggregation and produces richer, geometry-aware representations for tasks that depend on molecular flexibility and spatial precision.

3 Fragment-Aware Conformer Ensemble Transformer

Notations. Let $Δ_{N} : = {𝝎 \in ℝ_{+}^{N} : 𝝎^{⊤} 𝟏_{N} = 1}$ denote the probability simplex, where $𝟏_{N}$ is the all-ones vector in $ℝ^{N}$ . For $x \in 𝛀$ , $δ_{x}$ is the Dirac measure at $x$ . We write $[K] : = {1, \dots, K}$ for $K \in ℕ$ , and use $⟨ \cdot, \cdot ⟩$ to denote the Frobenius inner product. For a tensor $𝑳 = (L_{i j k l})$ and matrix $𝑩 = (B_{k l})$ , define the contraction $𝑳 \otimes 𝑩 : = (\sum_{k l} L_{i j k l} B_{k l})_{i j}$ . A graph $G = (V, E)$ has $N : = | V |$ nodes and edges $E \subseteq {{u, v} \subseteq V : u \neq v}$ . An attributed graph is given by $𝒢 : = (𝑯, 𝑨, 𝝎)$ , where $𝑯 \in ℝ^{N \times d}$ is the node feature matrix (with row $𝑯_{v}$ for node $v$ ), $𝑨$ encodes structure (e.g., adjacency or shortest-path), and $𝝎 \in Δ_{N}$ is a node weight distribution.

Given two graphs $𝒢_{1}$ and $𝒢_{2}$ with $N_{1}$ and $N_{2}$ nodes, the Fused Gromov-Wasserstein (FGW) distance (Peyré et al., 2016; Titouan et al., 2019, 2020) is: $FGW_{p, α} (𝒢_{1}, 𝒢_{2}) : = \min_{𝝅 \in Π (𝝎_{1}, 𝝎_{2})} ⟨ (1 - α) 𝑴 + α 𝑳 (𝑨_{1}, 𝑨_{2}) \otimes 𝝅, 𝝅 ⟩,$ where $Π (𝝎_{1}, 𝝎_{2}) : = {𝝅 \in ℝ_{+}^{N_{1} \times N_{2}} : 𝝅 𝟏_{N_{2}} = 𝝎_{1}, 𝝅^{⊤} 𝟏_{N_{1}} = 𝝎_{2}}$ is the set of valid couplings, $𝑴 [i, j] = d_{f} (𝑯_{1} [i], 𝑯_{2} [j])^{p}$ is the node feature cost, $𝑳 (𝑨_{1}, 𝑨_{2}) [i, j, l, m] = | 𝑨_{1} [i, j] - 𝑨_{2} [l, m] |^{p}$ captures structural mismatch, and $α \in [0, 1]$ balances feature and structure alignment.

3.1 Conformer Generation

Following prior work, we generate molecular conformers using distance geometry methods that convert interatomic constraints, such as bond lengths, angles, stereochemistry, and steric limits, into 3D coordinates (Hawkins, 2017). A lightweight force field refines the structures toward low-energy conformations. Compared to quantum methods like DFT, this approach is highly scalable and efficient for large datasets. As in prior studies (Raza et al., 2022; Nguyen et al., 2024b), we use RDKit (Landrum, 2016) for fast and reliable conformer generation.

Refer to caption — Figure 1: FACET overview. The model integrates 2D topological features from molecular and fragment graphs using message passing neural networks (MPNNs), combines them with 3D conformer features processed through a 3D-MPNN ( $Φ$ ) and a lightweight adaptor, and feeds them into a fragment-aware graph attention for geometry-aware embedding guided by FGW distance. A final structural aggregation module fuses 2D and 3D representations into a unified embedding for downstream tasks.

3.2 Framework Overview

We propose a neural architecture as in Figure 1 composed of three components. First, a 2D MPNN captures topological features from the molecular graph, while another MPNN operates on a fragment-induced hypergraph to encode higher-order structural priors (Sec.3.3). The outputs from both are fused and passed through a lightweight adaptor module, which dynamically refines and calibrates the feature representations before feeding them into the pre-trained graph transformer (Sec.3.4). Given a set of 3D conformers sampled from an input molecule graph, we use a 3D-MPNN to extract their embedding features (Sec. 3.4.1), followed by another adaptor layer. These adaptors are crucial for handling the variability in 3D conformer and 2D molecule features extracted by the 3D-MPNN ( $Φ (.)$ ) and 2D-MPNN. Then a graph transformer is used to aggregate the conformer feature sets into a geometry-aware molecular embedding, guided by atom-level and fragment-level attention. Finally, a permutation- and E(3)-invariant fusion module combines the 2D and 3D representations into a unified embedding for downstream tasks (Sec. 3.4.5).

3.3 Fragment-Enhanced 2D Molecular Graph

Each molecule is represented as a 2D graph $G = (V, E)$ , where nodes $V$ correspond to atoms and edges $E$ to covalent bonds. Atom features $𝐡_{v}^{(0)} \in ℝ^{d}$ encode properties like atom type and valence, while bonds $(u, v)$ are annotated with features $𝒆 (u, v)$ (Scarselli et al., 2008; Gilmer et al., 2017a). We adopt a 2D message-passing neural network (MPNN) that updates node embeddings layer-wise:

𝐡_{v}^{ℓ} = 𝖴 𝖯 𝖣^{ℓ} (𝐡_{v}^{ℓ - 1}, 𝖠 𝖦 𝖦^{ℓ} (𝐌^{ℓ} (𝐡_{v}^{ℓ - 1}, 𝐡_{u}^{ℓ - 1}, 𝒆_{v, u}) ∣ u \in N (v))),

(1)

where $𝐌^{ℓ}$ is a message function, $𝖠 𝖦 𝖦^{ℓ}$ is sum aggregation, and $𝖴 𝖯 𝖣^{ℓ}$ is identity or multilayer perception layers. We use Graph Attention Networks (GATs) (Veličković et al., 2017), where messages are computed as:

\begin{matrix} 𝐌_{v, u}^{ℓ} = α_{v, u}^{ℓ} 𝐖^{ℓ} 𝐡_{u}^{ℓ - 1}, \\ α_{v, u}^{ℓ} = s o f t m a x_{u} (L e a k y R e L U (^{⊤} [𝐖^{ℓ} 𝐡_{v}^{ℓ - 1}, |, 𝐖^{ℓ} 𝐡_{u}^{ℓ - 1}])) . \end{matrix}

(2)

After $L$ layers, we obtain final atom-level features $𝐡_{v}^{L}$ for each atom $v$ used for downstream tasks.

Fragment-Based Structural Augmentation.

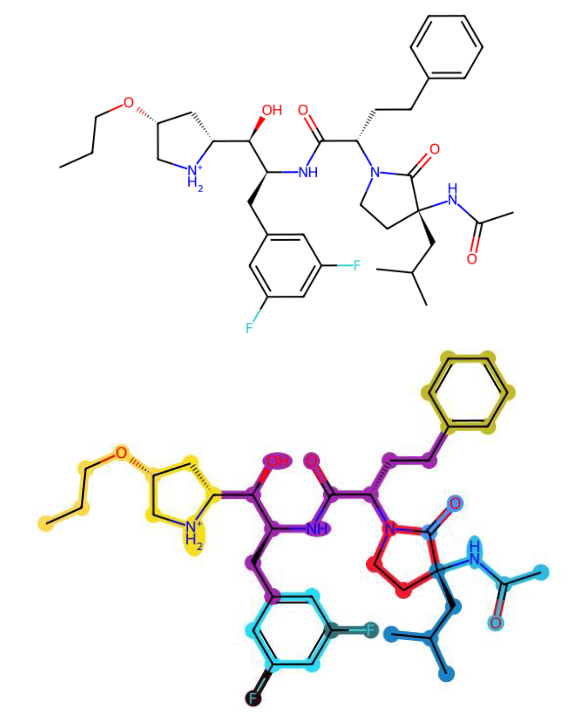

To enhance atomic representations with higher-order structural context, we construct a fragment hypergraph from the input molecular graph $G$ using ring-path decomposition (Kong et al., 2022; Geng et al., 2023; Wollschläger et al., 2024) to identify key substructures such as aromatic rings and functional groups (Fig. 2). Each fragment is treated as a node in a new graph $G^{frag} = (V^{frag}, E^{frag})$ , where nodes correspond to fragments and edges are induced from the connectivity in $G$ , two fragments are connected if they share an atom or are directly bonded.

We apply the same GAT formulation in Eq. (1) to the fragment graph to obtain fragment embeddings ${𝐡_{f}^{frag}}_{f \in V^{frag}}$ . Then for each atom $v$ that belongs to its fragment $f (v)$ , we fuse their atom-level representations $𝐡_{v}^{(L)}$ with ${𝐡_{f}^{frag}}$ by:

\tilde{𝐡}_{v}^{(L)} = 𝐡_{v}^{(L)} + F F N (𝐡_{f (v)}^{frag}),

(3)

where $F F N (\cdot)$ is a learnable feedforward network that projects fragment-level context into the same space as atom features. If an atom belongs to multiple fragments, its atom-level features are aggregated with the corresponding fragment structures using the shared $F F N (\cdot)$ . Finally, we define a fragment-enhanced graph-level representation that is computed by applying a readout function $𝐡_{2 D} = 𝖱 𝖤 𝖠 𝖣 𝖮 𝖴 𝖳 ({\tilde{𝐡}_{v}^{(L)} ∣ v \in V}) = \sum_{v \in V} \tilde{𝐡}_{v}^{(L)} .$ Intuitively, the dual-level encoding combining local atomic features and global fragment-level context as Eq.(3) allows the model to reason over both fine-grained and coarse-grained structures, enhancing the expressivity of the molecular representation.

3.4 Learning Graph Transformer for 3D Molecule Aggregations

A molecular conformer is represented as a set $S = {𝐫_{i}, Z_{i}}_{i = 1}^{N}$ , where $N$ denotes the number of atoms, $𝐫_{i} \in ℝ^{3}$ corresponds to the 3D Cartesian coordinates of atom $i$ , and $Z_{i} \in ℕ$ indicates its atomic number.

3.4.1 3D conformer feature representation

For each conformer $S$ , we can define its graph $𝒢_{S}$ and compute its 3D feature embedding by using a geometric message-passing network SchNet (Schütt et al., 2017), though other $E (3)$ -invariant neural architectures can be readily substituted without modification. We represent the matrix of atom-level features from the final message-passing layer $L$ of SchNet as $𝐇$ , where each column $𝐇 [v]$ corresponds to the feature vector $𝐡^{(L)}_{3 d, v}$ of atom $v$ . We then compute the vector representation for a conformer $S$ as $𝐡_{3 d, S} = \sum_{v \in V} (𝐖_{3 d}) 𝐡_{3 d, v}^{(L)} + 𝐛_{3 d} \in ℝ^{d}$ with $𝐖_{3 d}$ and $𝐛_{3 d}$ are learnable vectors. Given a set of $K$ conformers ${𝕊_{k}}_{k = 1}^{K}$ , we define $𝐇_{3 d} [k] = 𝐡_{3 D, 𝕊_{k}}$ as the feature embedding for the $k$ -th conformer. The matrix $𝐇_{3 d} \in ℝ^{K \times d}$ thus summarizes the feature representations of all conformers in the set.

3.4.2 Fragment-aware Graph Former

Given the atom-wise feature matrix $𝐇$ for each conformer $S$ , we aim to learn structure-encoded latent representations using Graph Transformer architectures (Zhang et al., 2020; Ying et al., 2021; Kreuzer et al., 2021; Luo et al., 2024). We adopt the architecture from (Ying et al., 2021) due to its strong expressiveness on small molecular graphs, and further extend its attention mechanism with fragment sub-structures (Fig .2). It is important to note that our framework is flexible and can incorporate alternative transformer-based models.

In particular, we compose $N$ of transformer layers (Vaswani et al., 2017). Each Transformer layer consists of a self-attention mechanism followed by a position-wise feed-forward network. Given $𝐇 = [𝐡_{1}^{⊤}, \dots, 𝐡_{n}^{⊤}]^{⊤} \in ℝ^{n \times d}$ computed in Section 3.4.1 by a 3D-MPNN, where $𝐡_{i} = 𝐡^{(L)}_{3 d, v_{i}} \in ℝ^{1 \times d}$ is the vector embedding of an atom $v_{i}$ with $d$ is the hidden size. We compute self-attention, by linearly projecting $𝐇$ into query ( $𝐐$ ), key ( $𝐊$ ), and value ( $𝐕$ ) matrices using learned weights $𝐖_{Q}, 𝐖_{K}, 𝐖_{V} \in ℝ^{d \times d}$ :

	$𝐐 = 𝐇 W_{Q}, 𝐊 = 𝐇 W_{K}, 𝐕 = 𝐇 W_{V},$
	$\tilde{𝐀} = 𝐐 𝐊^{⊤} / \sqrt{d}, Attention (𝐇) = softmax (\tilde{𝐀}) 𝐕 .$		(4)

Here, $\tilde{𝐀}$ denotes the attention score matrix representing pairwise similarities between tokens. For clarity, we present the single-head version; extending to multi-head attention is straightforward. Bias terms are omitted for brevity.

While the attention in Eq. (4) only uses feature nodes, leveraging the structural information of the 3D conformer graph is essential. Follow (Ying et al., 2021), we incorporate the (i) centrality encoding, measuring how important a node is in the graph using its degree, and (ii) spatial encoding, measuring spatial relation between two nodes $v_{i}$ and $v_{j}$ in a graph $𝒢_{S}$ by the distance of the shortest path distance (SPD) (Cormen et al., 2022; Balaban, 1985) together with a weighted learnabe value along edges of SPD between two nodes. Specifically, we incorporate (i) by:

𝐡_{i} = 𝐡_{i} + z^{-}_{deg^{-} (v_{i})} + z^{+}_{deg^{+} (v_{i})},

(5)

where $z^{-}, z^{+} \in ℝ^{d}$ are learnable embedding vectors specified by the indegree $deg^{-} (v_{i})$ and outdegree $deg^{+} (v_{i})$ of atom $v_{i}$ respectively. Assume $\tilde{𝐀}_{i j}$ as the $(i, j)$ -element of the Query-Key product matrix $\tilde{𝐀}$ , the condition (ii) extends $\tilde{𝐀}_{i j}$ as:

\tilde{𝐀}_{i j} = (𝐡_{𝐢} 𝐖_{Q}) (𝐡_{j} 𝐖_{K})^{T} / \sqrt{d} + s_{ϕ (v_{i}, v_{j})} + c_{i j},

(6)

where $s_{ϕ (v_{i}, v_{j})}$ is a learnable scalar indexed by $ϕ (v_{i}, v_{j})$ , which denotes for SPD distance between $v_{i}$ and $v_{j}$ , and shared across all layers; $c_{i j} = 𝔼 (x_{e_{n}} (w^{E}_{n})^{T})$ where $𝔼 (.)$ is the expectation operation, $x_{e_{n}}$ is the feature of the $n$ -th edge $e_{n}$ in $SPD_{i j}$ , $w_{n}^{E} \in ℝ^{d_{E}}$ is the $n$ -th weight embedding, and $d_{E}$ is the dimensionality of edge feature compute as difference in feature embeddings of two nodes belong to it.

While the spatial encoding in Eq.(6) is implicated by the SPD, we argue that this might inadequately capture chemically meaningful substructures (ablation in Tab. 5). This motivates us to extend attention scores in Eq. (6) using values derived from (iii) fragment-level node features computed on 2D topology graph in Eq. (3), directly guiding attention toward structurally and functionally relevant regions such as rings, functional groups, or scaffolds. To this end, we compute an adjacency-like matrix $𝐀 (G)$ using cosine distance over the final node embeddings $\tilde{𝐡}_{v}^{(L)}$ . Specifically, for each pair of atoms $(v_{i}, v_{j})$ in the 2D molecular graph, we define

𝐀 (G)_{i j} = 1 - \frac{⟨ \tilde{𝐡}_{i}^{(L)}, \tilde{𝐡}_{j}^{(L)} ⟩}{| \tilde{𝐡}_{i}^{(L)} |_{2} \cdot | \tilde{𝐡}_{j}^{(L)} |_{2}},

(7)

which quantifies their directional dissimilarity in the embedding space. Finally, we use the attention score as:

\tilde{𝐀}_{i j} = (𝐡_{𝐢} 𝐖_{Q}) (𝐡_{j} 𝐖_{K})^{T} / \sqrt{d} + s_{ϕ (v_{i}, v_{j})} + c_{i j} + 𝐀 (G)_{i j} .

(8)

3.4.3 Learning to Approximate FGW distance

We denote by $𝒯_{θ} (.)$ be a graph transformer model that has its attention operation as Eq.(8), our goal is to train $𝒯_{θ} (\cdot)$ to map the feature representation of each conformer $S$ into a latent space where the $L_{2}$ distance between any pair $S_{i}$ , $S_{j}$ approximates their FGW distance - an effective, yet computationally expensive, geometry-aware metric (Brogat-Motte et al., 2022; Ma et al., 2023; Nguyen et al., 2024a). To this end, given a set of $Ω = {S_{i}}_{i = 1}^{K}$ of $K$ generated conformers, we sample $B$ conformers from $Ω$ , then compute their encoding features by $𝒯_{θ} (𝐇_{i})$ for each $S_{i} \in B$ . These outputs are compared with their pair-wise FGW distance to optimize the loss:

ℒ_{e n c} = \sum_{i j} [| | 𝒯_{θ} (𝐇_{i}) - 𝒯_{θ} (𝐇_{j}) | |_{2}^{2} - FGW_{p, α} (𝒢 (S_{i}), 𝒢 (S_{j}))] .

(9)

By minimizing the loss $ℒ_{enc}$ , we update the parameters of the transformation module $𝒯_{θ} (\cdot)$ using gradient descent: $θ \leftarrow θ - ϵ \nabla ℒ_{enc} .$ Once trained, we freeze $𝒯_{θ}$ and incorporate it back into the framework to compute a geometry-aware representation across $K$ conformers ${𝕊_{k}}_{k = 1}^{K}$ as follows: $\bar{𝐇} = 𝔼 ({𝒯_{θ} (𝐇_{i})}_{i = 1}^{K}),$ where $\bar{𝐇}$ denotes the aggregated structural embedding. However, the 3D conformer feature distribution, extracted by 3D-MPNN, used to train $ℒ_{enc}$ (Eq. 9) may experience a domain shift when co-trained with other components in the full framework (Sec. 3.4.4) due to the continuous updating of 3D-MPNN. To address this, we design adapter layers as simple FFN layers to transform the input features in Eq. (9), aligning them to the seen distribution during training $𝒯_{θ}$ .

3.4.4 Invariant Aggregation of 2D and 3D Representation

We integrate representations from the 2D molecular graph and multiple 3D conformers using both average pooling and a GraphTransformer-based aggregation. The transformer captures rich spatial interactions while ensuring permutation invariance across conformers and E(3) equivariance, preserving robustness to 3D transformations. Given $K$ conformers, using $\bar{𝐇}$ as the GraphTransformer (GT)-aggregated atom features. We compute the global GT representation as: $𝐡_{G T} = \sum_{v \in V} (𝐖_{G T}, \bar{𝐡}_{v} + 𝐛_{G T}),$ where $\bar{𝐡}_{v} = \bar{𝐇} [v]$ and $𝐖_{G T}, 𝐛_{G T}$ are learnable parameters. We then define $𝐇_{2 D}$ and $𝐇_{G T}$ be the matrices whose columns are, respectively, $K$ copies of the 2D feature $𝐡_{2 D}$ (Sec.3.3) and $𝐡_{G T}$ representations from previous section. We fuse those representations with the 3D conformer features $𝐇_{3 D}$ to produce the final atom-wise embedding: $𝐇_{c o m b} = \tilde{𝐖}_{2 D} 𝐇_{2 D} + \tilde{𝐖}_{3 D} 𝐇_{3 D} + \tilde{𝐖}_{G T} 𝐇_{G T},$ where each $\tilde{𝐖_{i}, i \in {2 D, 3 D, G T}}$ are trainable projection matrix. The combined embedding $𝐇_{c o m b}$ is fed into a final FFN layer to predict the target property.

4 Theoretical Bounds for Embedding Non-Euclidean FGW Distance Matrices

Learning a Transformer $𝒯_{θ} (.)$ to predict the FGW problem is closely related to multidimensional scaling (MDS) (Torgerson, 1952). Building on recent advances (Haviv et al., 2024; Sonthalia et al., 2021), we extend MDS theory to derive bounds on the error of embedding non-Euclidean distances, specifically Wasserstein and FGW, into a Euclidean space suitable for graph transformer integration. While computing FGW barycenters is costly, our embedding enables efficient approximation via averaging and decoding in latent space. Prior work (Haviv et al., 2024) validated this approach for Wasserstein distances; we generalize it to FGW and provide theoretical justification, offering a scalable path for structure-aware graph alignment.

Cumulative Stress Optimization Problem via Pairwise FGW Distance Matrix. We define the pairwise FGW distance matrix $𝑫$ for a set of $K$ distributions as $D_{i j} : = FGW_{p, α} (𝒢 (S_{i}), 𝒢 (S_{j}))$ for all $i, j \in [K]$ , following Section 3.4.3. The empirical FGW barycenter is given by $\bar{𝒢}_{K} \in a r g m i n_{𝒢 \in 𝒫_{p} (𝛀)} \frac{1}{K} \sum_{i = 1}^{K} FGW_{p, α}^{p} (𝒢, 𝒢 (S_{i}))$ , where $𝒫_{p} (𝛀)$ denotes the space of attributed graphs with finite $p$ -th order FGW distance.

To approximate this barycenter in embedding space, we require $∥ \bar{𝒆}_{K} - 𝒆_{j} ∥_{2}^{2} \approx FGW_{p, α} (\bar{𝒢}_{K}, 𝒢 (S_{j})) : = \bar{D}_{K, j}$ for all $j \in [K]$ , where $\bar{𝒆}_{K} = \frac{1}{K} \sum_{i = 1}^{K} 𝒆_{i}$ is the mean embedding and $𝒆_{i} : = 𝒯_{θ} (𝐇_{i})$ is the learned representation. To assess how well the embeddings ${𝒆_{i}}_{i = 1}^{K} \subset ℝ^{d}$ preserve both pairwise FGW distances and barycenter structure, we define the cumulative stress: $𝒮 = \min_{𝒆_{i} \in ℝ^{d}} \sum_{i, j \in [K]} (∥ 𝒆_{i} - 𝒆_{j} ∥_{2}^{2} - D_{i j})^{2} + \sum_{j \in [K]} (∥ \bar{𝒆}_{K} - 𝒆_{j} ∥_{2}^{2} - \bar{D}_{K, j})^{2}$ . This objective enforces faithful reconstruction of both the distance structure and the barycenter alignment in the learned embedding space, as formalized in Theorem 4.1 (see proof in Appendix D).

Theorem 4.1.

Let $𝐃$ denote the pairwise $FGW_{p, α}$ distance matrix, and let ${λ_{i}, 𝐯_{i}}_{i = 1}^{K}$ represent the eigendecomposition of the associated criterion matrix $𝐅 = - 𝐂 𝐃 𝐂$ , where $𝐂 = 𝐈_{K} - \frac{1}{K} 𝟏_{K} 𝟏_{K}^{⊤}$ is the centering matrix. The optimal stress value, denoted by $𝒮^{*}$ , is bounded as follows: $ℒ \leq 𝒮^{*} \leq 𝒰$ , where $ℒ : = \sum_{i : λ_{i} < 0} λ_{i}^{2}$ , $𝒰 : = \sum_{i j} (Δ g_{i} + Δ g_{j})^{2} + ℒ + 𝒞$ , $Δ g_{i} = \frac{1}{2} \sum_{j : λ_{j} < 0} λ_{j} \cdot 𝐯_{i j}^{2}$ . Here, $𝐯_{i j}$ denotes the $j$ -th component of the $i$ -th eigenvector $𝐯_{n}$ of $𝐅$ , and $𝒞$ quantifies the approximation error between the empirical barycenter in the Euclidean embedding space and that in the original space of undirected attributed graphs.

5 Experiments

5.1 Implementation Details

General pipeline. Our training consists of three stages. Stage 1: We train 2D and 3D MPNNs to extract features from molecular graphs and conformers. These features are also used to supervise the Graph Transformer in the next stage. Stage 2: The Graph Transformer is trained independently to approximate FGW distances between conformers using the features from Stage 1. We use the architecture of Graphormer (Ying et al., 2021), with 12 attention layers, 8 heads, and a hidden size of 64 (372k parameters). It is trained for 1000 epochs with a learning rate of $1 e^{- 5}$ . Stage 3: We integrate all components into an end-to-end model, where only the 2D and 3D MPNNs are updated (300 epochs, learning rate $5 e^{- 4}$ ). To address feature distribution shift caused by finetuning, we apply FFN-based adaptor layers to the 2D and 3D features before feeding them to the Graph Transformer.

We use Adam for all stages. Further experimental details are provided in the Appendix.

5.2 Approximation of FGW Distance via Graph Transformer

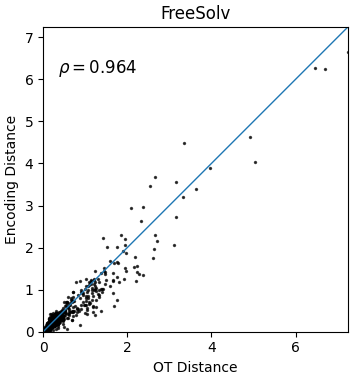

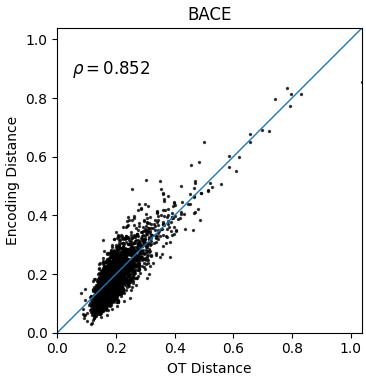

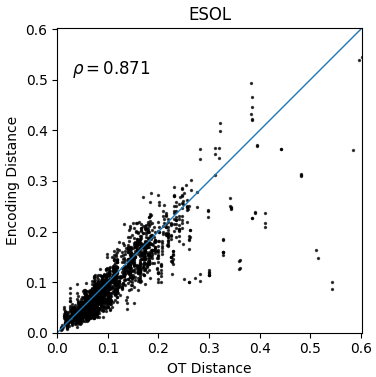

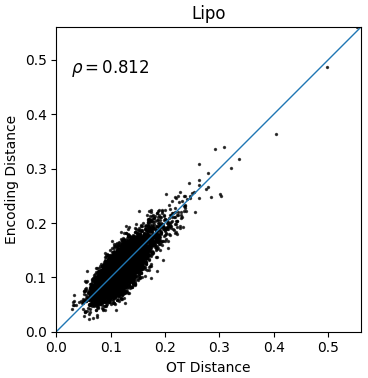

Beyond theoretical estimation, we empirically evaluate how well the Graph Transformer approximates FGW distances between conformers in Euclidean space. As shown in Figure 2, results on the MoleculeNet benchmarks reveal a strong correlation between learned embeddings and true FGW distances, validating the transformer’s effectiveness in simulating costly FGW computations. While correlation varies slightly across datasets, the results consistently highlight the model’s reliability as a fast FGW surrogate, especially as the number of conformers in the aggregation increases

5.3 Scaling Fragment Geometry-Aware Aggregation

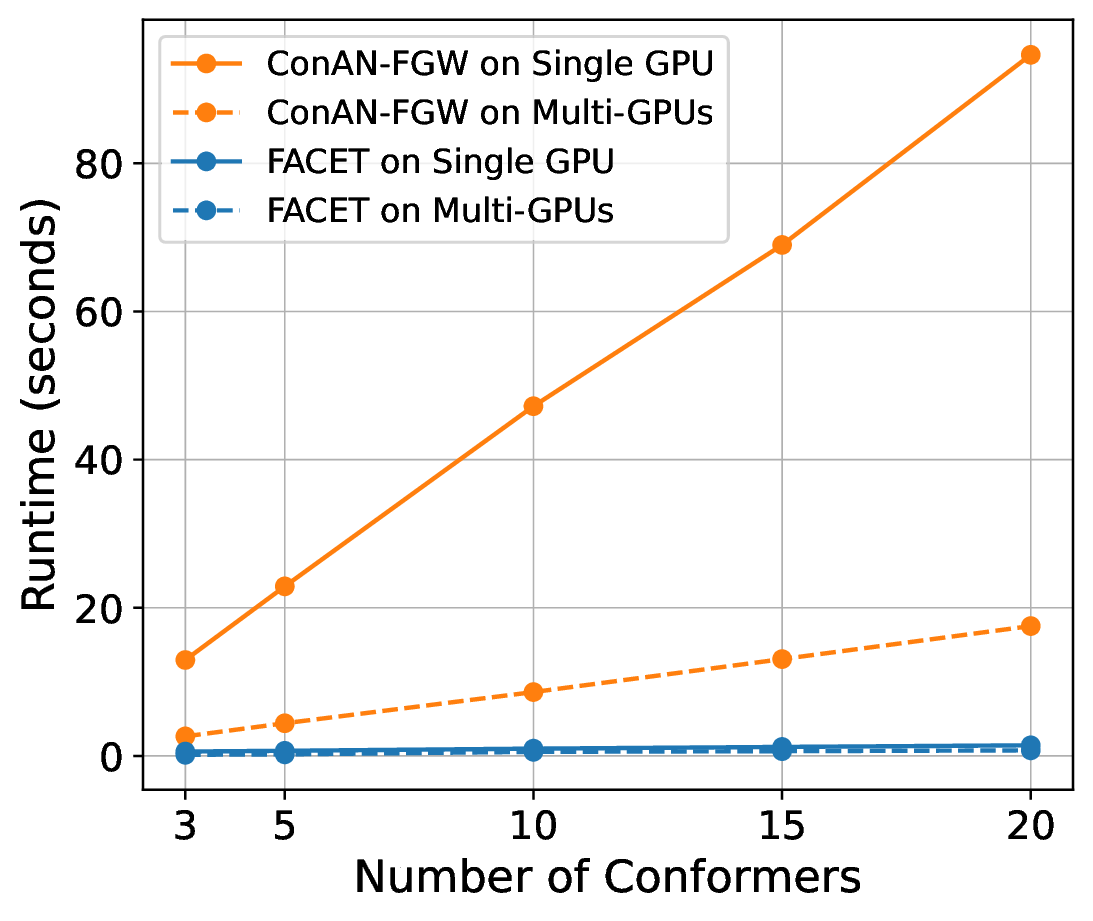

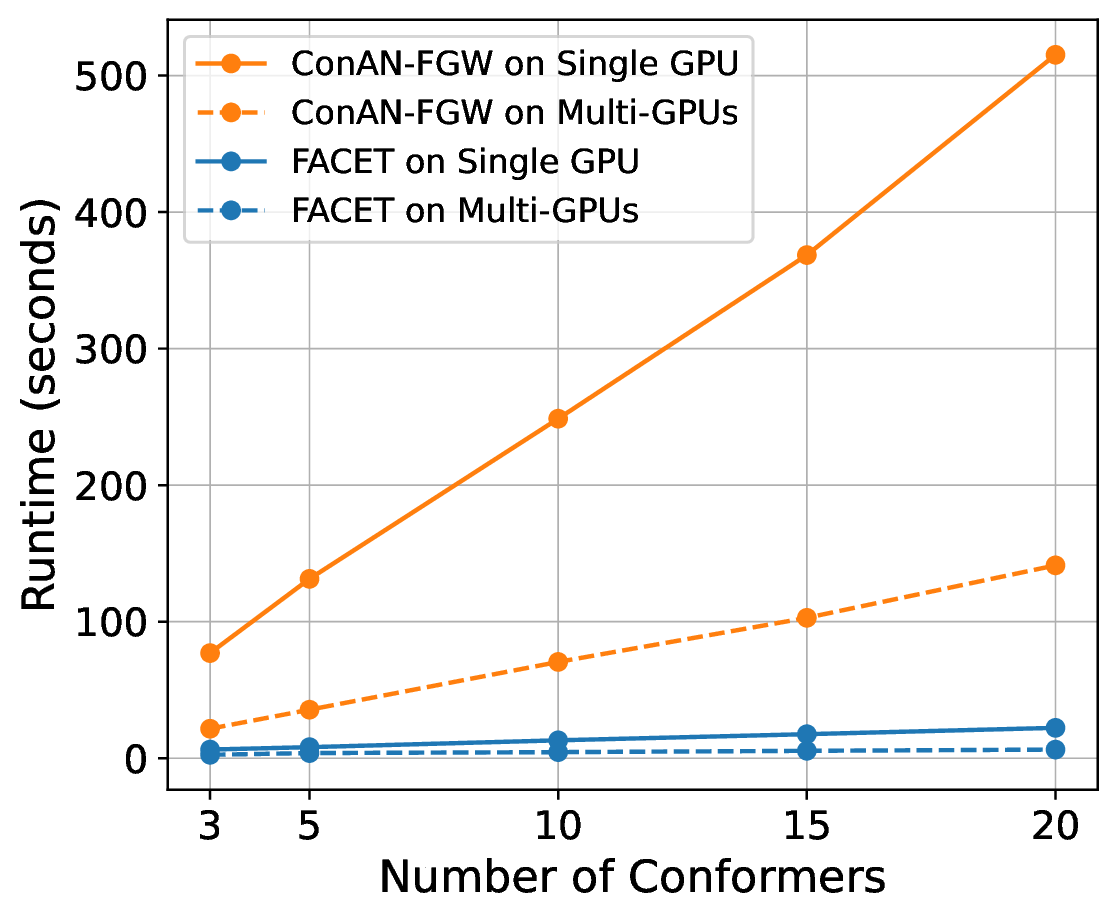

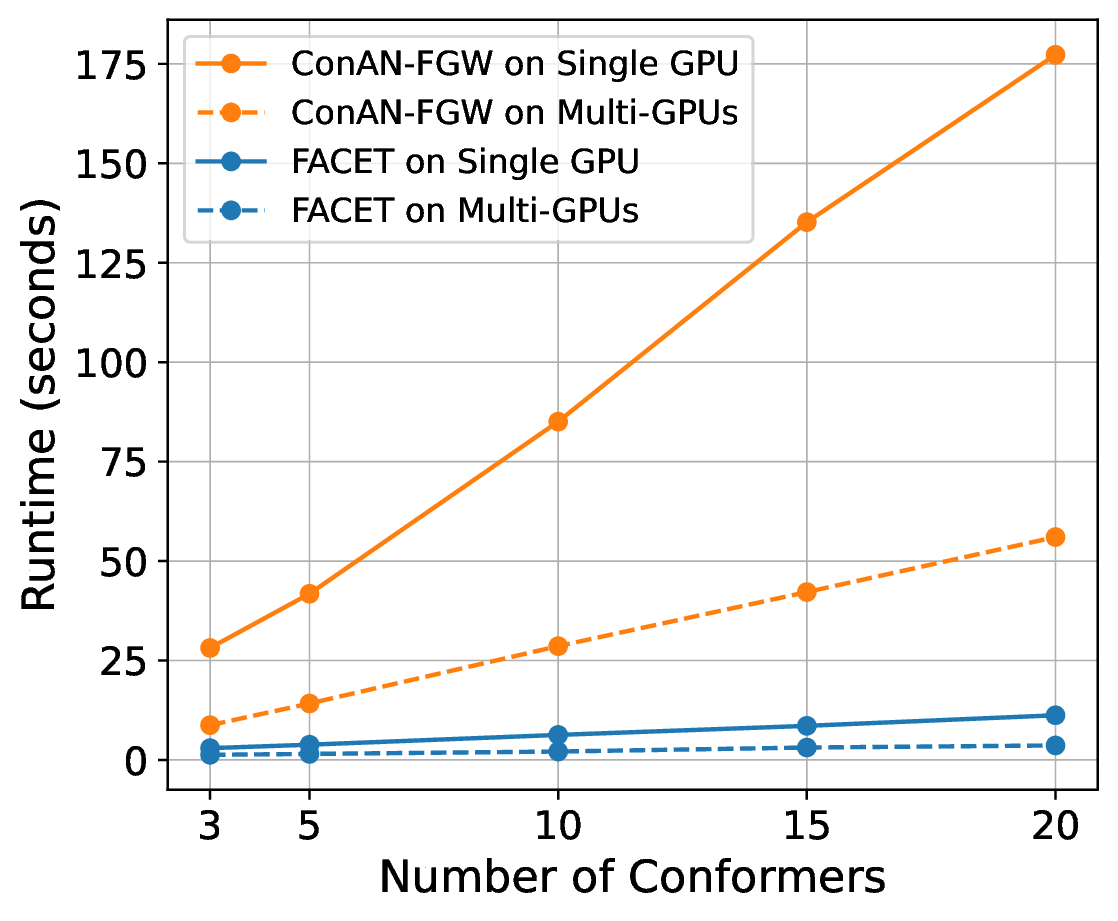

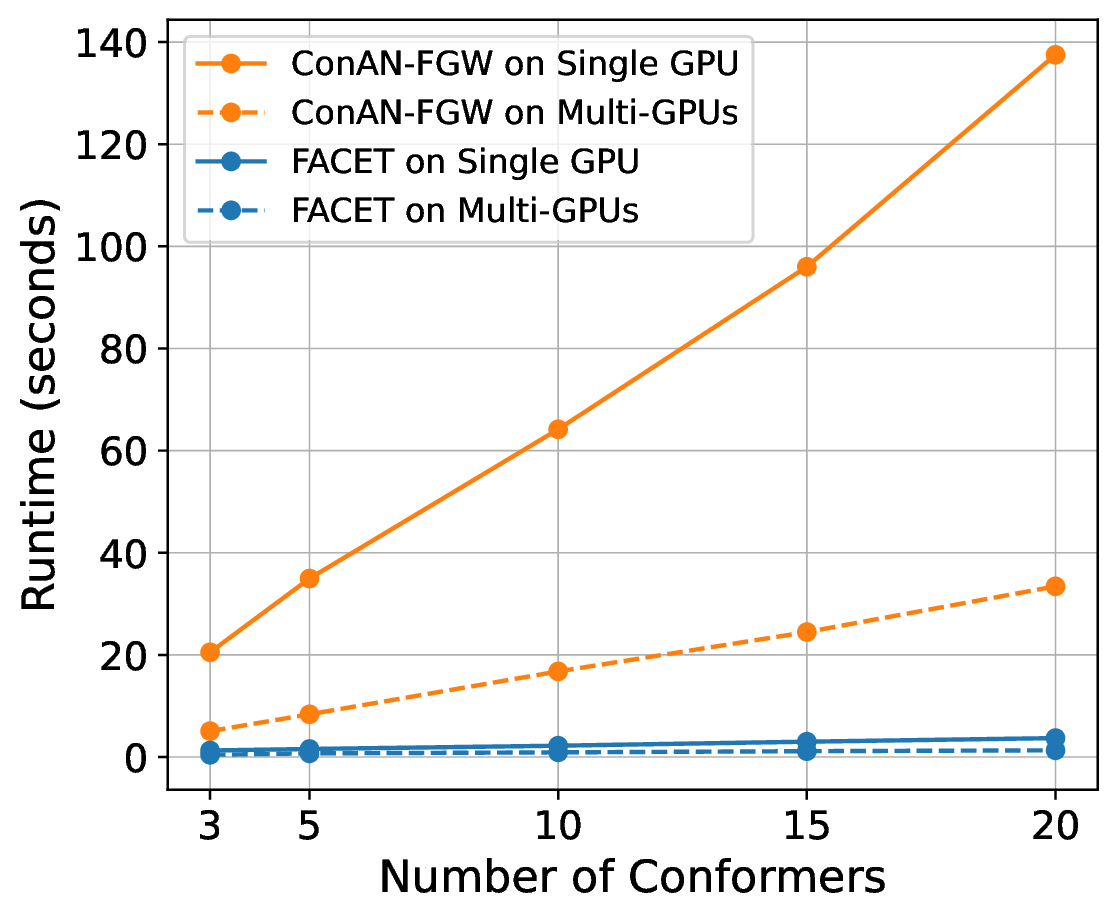

To validate the scalability of FACET model, based on a Graph Transformer for structure-aware aggregation, we compare it against Conan-FGW (Nguyen et al., 2024a), a method computing FGW distances on-the-fly during training and inference. We evaluate two key aspects: (i) inference-time efficiency with varying numbers of conformers, and (ii) average training time per epoch at different dataset scales. For inference, we measure the time required to generate output embeddings from $K$ conformers ( $K \in 5, 10, 15, 20$ ) using single and multi-GPU settings. Experiments are conducted on the BACE dataset and summarized in Figure 3.

It can be seen that (a) FACET exhibits strong scalability, maintaining a nearly constant runtime across varying numbers of conformers, in both single- and multi-GPU environments. In contrast, ConAN-FGW scales poorly, with runtime increasing sharply as the number of conformers grows. Although using multiple GPUs reduces the runtime compared to a single GPU, the upward trend persists, with runtimes surpassing 50 seconds for 20 conformers. (b) Secondly, FACET’s similar runtime on single- and multi-GPU setups reflects its efficiency and the small workload in this experiment. In such cases, multi-GPU overhead can outweigh speedup gains. We expect multi-GPU acceleration to be beneficial mainly for large-scale tasks, like processing a large batch size of thousands of molecules or handling memory-intensive inputs.

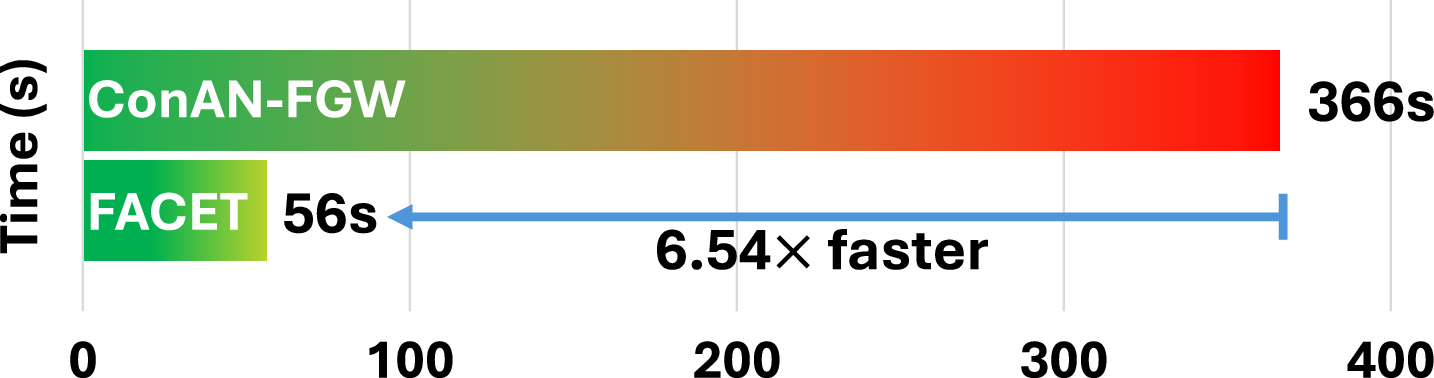

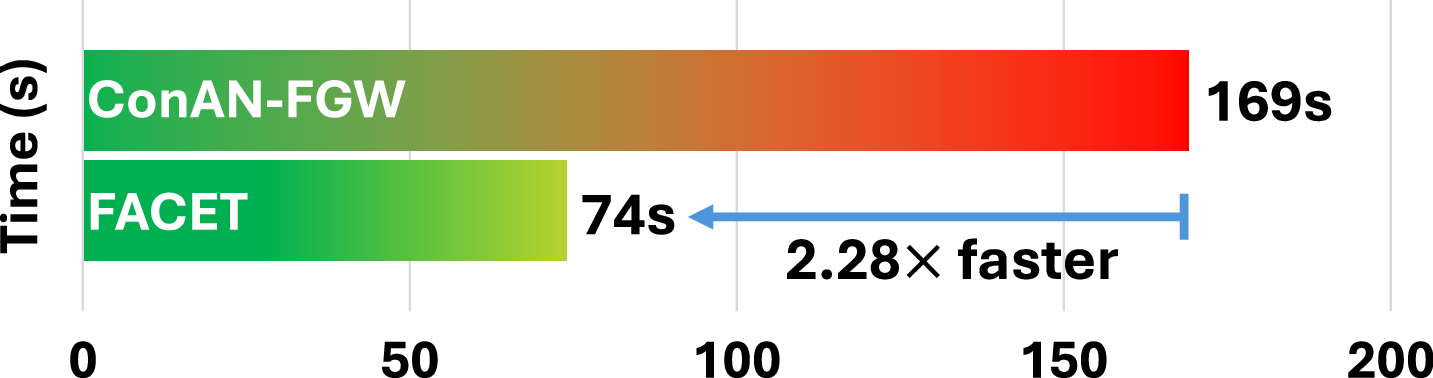

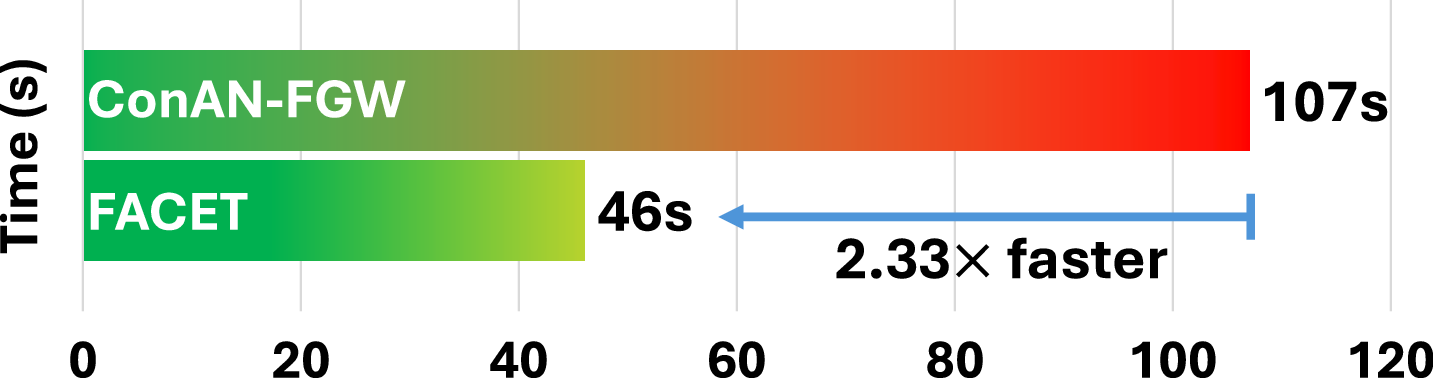

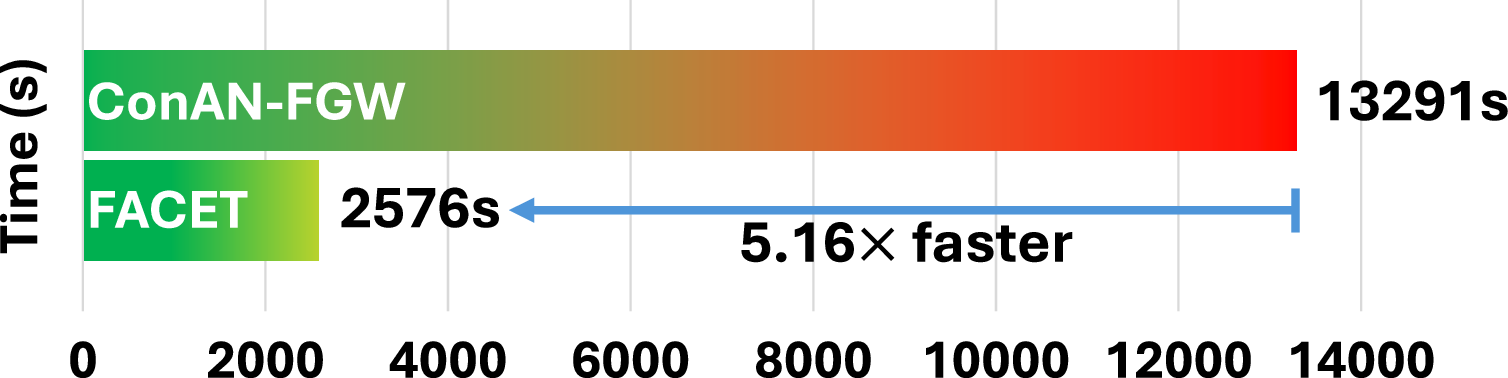

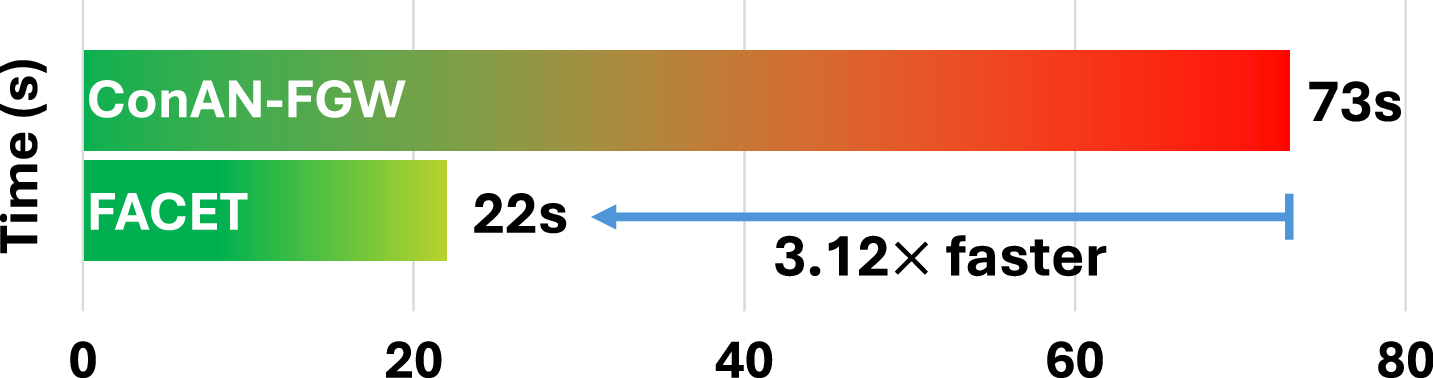

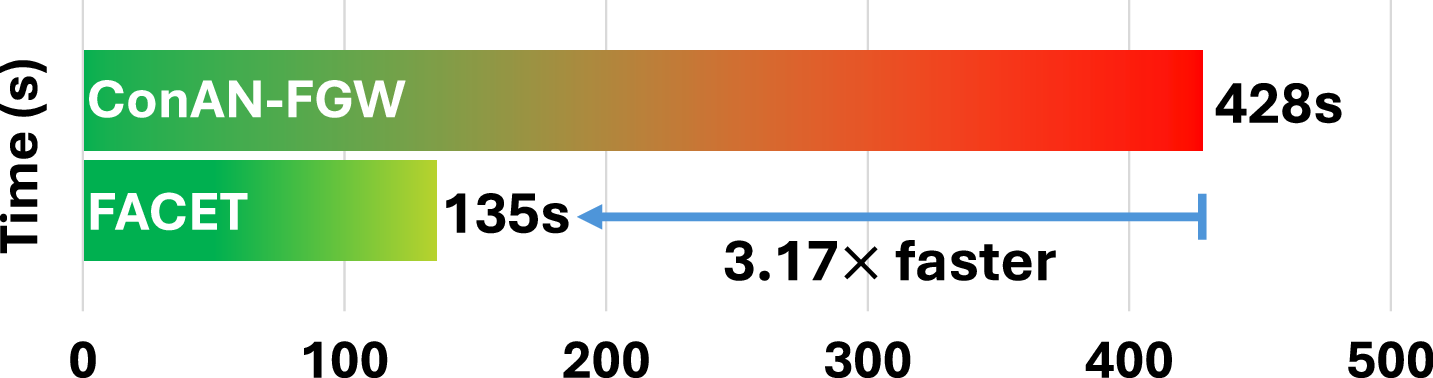

In the second setting, we compare the average per-epoch training time of FACET and Conan-FGW on two datasets of different scales: Kraken (1,086 molecules) and Drugs-75k (52,569 molecules). As summarized in Figure 4, FACET exhibits linear scaling with the number of conformers and achieves 5–6× faster runtime on average than Conan-FGW. This efficiency is critical for scaling to large datasets and longer training schedules - for example, training Conan-FGW on Drugs-75k for 300 epochs requires 1,107.58 GPU hours, while FACET only takes 214 hours. This can be further reduced to 26.75 hours with 8 GPUs, compared to 138 hours for Conan-FGW under the same hardware setup.

5.4 State-of-the-Art Performance Comparison on Molecular Tasks

Datasets. We evaluate molecular property regression on the MoleculeNet (Wu et al., 2018) and MARCEL (Zhu et al., 2024a) benchmarks. MoleculeNet includes four datasets, ESOL, BACE, Lipo, and FreeSolv, with targets covering solubility, inhibitory concentration (pIC₅₀), lipophilicity, and hydration free energy. MARCEL consists of Drugs-75K and Kraken, where the goal is to predict the Boltzmann-averaged property $⟨ y ⟩_{k_{ℬ}}$ from sampled conformers. Drugs-75K uses quantum descriptors (IP, EA, $χ$ ), while Kraken focuses on Sterimol features (B₅, L, and their buried forms). The Boltzmann average is computed as a weighted sum over conformer-specific values $y_{i}$ with probabilities $p_{i}$ . All datasets follow the original random split settings, using the provided sampled conformers.

Table 3: Number of samples for each split on tasks of MoleculeNet and the MARCEL benchmark.

Model	Lipo	ESOL	FreeSolv	BACE	Drugs-75k	Kraken
Train	2940	789	449	1059	52569	1086
Valid.	420	112	64	151	7509	155
Test	2940	227	129	303	15021	311
Total	4200	1128	642	1513	75099	1552

Baselines. For the MoleculeNet benchmark (Wu et al., 2018), we compare FACET with a wide range of baselines, including (i) 2D supervised methods (e.g., GAT (Veličković et al., 2018), D-MPNN (Yang et al., 2019a), AttentiveFP (Xiong et al., 2019)), (ii) pre-training approaches (e.g., PretrainGNN (Hu et al., 2020b), GROVER (Rong et al., 2020), ChemBERTa-2* (Ahmad et al., 2022), ChemRL-GEM (Fang et al., 2022), MolFormer (Ross et al., 2022)), (iii) 3D-conformers based models ConfNet (Liu et al., 2021)), UniMol (Zhou et al., 2023), SchNet (Schütt et al., 2017), ChemProp3D (Axelrod & Gómez-Bombarelli, 2023),ConAN-FGW (Nguyen et al., 2024b)). Training follows the setup in ConAN-FGW (Nguyen et al., 2024b).

For the MARCEL benchmark (Zhu et al., 2024a), we compare FACET against 2D models (e.g., GIN (Xu et al., 2019), GIN+VN (Hu et al., 2020a), ChemProp (Yang et al., 2019b), GraphGPS (Rampášek et al., 2022)), 3D models (e.g., SchNet (Schütt et al., 2017), DimeNet++ (Klicpera et al., 2020), GemNet (Gasteiger et al., 2021), PaiNN (Schütt et al., 2021a), ClofNet (Du et al., 2022), LEFTNet (Du et al., 2023)), and ensemble strategies such as DeepSets-based ensemble (Zaheer et al., 2017), self-attention (Vaswani et al., 2017), etc. All methods are evaluated under the same settings as described in the MARCEL benchmark.

5.4.1 Results

MoleculeNet. FACET achieves state-of-the-art results on ESOL, FreeSolv, and BACE, reporting the lowest MSE scores across all tasks. Its consistent outperformance of CONAN-FGW underscores the value of incorporating fragment-level substructures into geometry-aware attention, which enhances the model’s ability to capture localized chemical contexts and improves molecular property prediction.

MARCEL. FACET also demonstrates strong performance on the MARCEL benchmark, improving results across both SchNet and GemNet backbones. By combining structure-aware aggregation with hierarchical fragment information, FACET remains robust even at scale - unlike CONAN-FGW, which struggles with MARCEL’s larger dataset. Together, these results highlight FACET’s effectiveness and scalability across diverse molecular modeling tasks.

Table 4: Comparison of molecular property regression performance on the MARCEL benchmark (MAE

↓

). The results of competing methods are adapted from (Zhu et al., 2024a).

Category	Model	Drugs-75K			Kraken
	Model	IP	EA	$χ$	B₅	L	BurB₅	BurL
2D models	GIN (Xu et al., 2019)	0.4354	0.4169	0.2260	0.3128	0.4003	0.1719	0.1200
	GIN+VN (Hu et al., 2020a)	0.4361	0.4169	0.2267	0.3567	0.4344	0.2422	0.1741
	ChemProp (Yang et al., 2019b)	0.4595	0.4417	0.2441	0.4850	0.5452	0.3002	0.1948
	GraphGPS (Rampášek et al., 2022)	0.4351	0.4085	0.2212	0.3450	0.4363	0.2066	0.1500
3D models	SchNet (Schütt et al., 2017)	0.4394	0.4207	0.2243	0.3293	0.5458	0.2295	0.1861
	DimeNet++ (Klicpera et al., 2020)	0.4441	0.4233	0.2436	0.3510	0.4174	0.2097	0.1526
	GemNet (Gasteiger et al., 2021)	0.4069	0.3922	0.1970	0.2789	0.3754	0.1782	0.1635
	PaiNN (Schütt et al., 2021a)	0.4505	0.4495	0.2324	0.3443	0.4471	0.2395	0.1673
	ClofNet (Du et al., 2022)	0.4393	0.4251	0.2378	0.4873	0.6417	0.2884	0.2529
	LEFTNet (Du et al., 2023)	0.4174	0.3964	0.2083	0.3072	0.4493	0.2176	0.1486
Ensemble Strategy with DeepSets	SchNet (Schütt et al., 2017)	0.4452	0.4232	0.2243	0.2704	0.4322	0.2024	0.1443
	DimeNet++ (Klicpera et al., 2020)	0.4126	0.3944	0.2267	0.2630	0.3468	0.1783	0.1185
	GemNet (Gasteiger et al., 2021)	0.4066	0.3910	0.2027	0.2313	0.3386	0.1589	0.0947
	PaiNN (Schütt et al., 2021a)	0.4466	0.4269	0.2294	0.2225	0.3619	0.1693	0.1324
	ClofNet (Du et al., 2022)	0.4280	0.4033	0.2199	0.3228	0.4485	0.2178	0.1548
	LEFTNet (Du et al., 2023)	0.4149	0.3953	0.2069	0.2644	0.3643	0.2017	0.1386
FACET	SchNet (Schütt et al., 2017)	0.4235	0.3971	0.2155	0.2508	0.3982	0.1803	0.1245
FACET	GemNet (Gasteiger et al., 2021)	0.3891	0.3852	0.1970	0.2225	0.3402	0.1503	0.0952

5.5 Ablation study

In this section, we analyze the key components of FACET through ablation studies. Specifically, we evaluate the impact of: (i) removing fragment structures from both the 2D MPNN and the self-attention mechanism in the graph transformer (w/o Frag); (ii) using fragments only in the 2D MPNN but not in the graph transformer (w/o Frag in Trans.); and (iii) omitting the trainable adaptor (w/o Adap.) that aligns 3D conformer features with the graph transformer, which can lead to performance degradation due to domain shift during training. As shown in Table 5, the absence of (i) significantly reduces performance, making FACET comparable to CONAN-FGW but with better scalability. Incorporating fragments into both components (ii) provides further gains, while (iii) proves essential for mitigating the domain shift introduced by changes in the 3D MPNN during training.

Table 5: FACET ablation study.

Settings	FACET	w/o Frag.	w/o Frag. in Trans.	w/o Adap.
ESOL	0.516	0.531	0.525	0.546
FreeSolv	0.967	1.072	0.973	1.085

6 Conclusion

We present the FACET, a scalable method that integrates 3D conformer features with fragment-level 2D graph information. Using a trainable attention mechanism, it dynamically fuses 2D and 3D representations, outperforming FGW-based baselines across all MoleculeNet tasks. It also scales to 75,000 molecules and large conformer ensembles in the MARCEL benchmark, achieving state-of-the-art results in property and reaction prediction with efficient runtimes.
